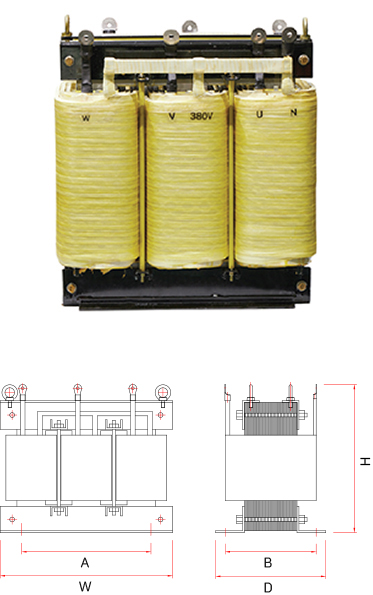

Dry type transformer

- Frequency: 50Hz / 60Hz
- Phase: 1Ø / 3Ø
- Voltage: ~6600V
- Rating: ~3000KVA

Rating
(kva)		 ~1000V
Dimension (mm) Weight
(kg)
W D H
100 690 409 790 434
150 760 453 790 556
200 805 743 925 736
300 835 488 1025 945
400 919 521 1045 1143
500 990 539 1005 1165
750 1060 892 1100 1981
1000 1060 906 1120 2149
1500 1290 954 1280 3203
2000 1410 947 1450 4133
Rating
(kva)		 1000~7200V
Dimension (mm) Weight
(kg)
W D H
100 810 441 800 497
150 910 477 790 623
200 900 489 925 790
300 930 524 1025 1016
400 1050 569 1045 1241
500 1120 596 1025 1480
750 1230 927 1100 2087
1000 1195 951 1120 2271
1500 1350 935 1280 3165
2000 1450 941 1440 4056
• The above dimension and weight can be changed without notice. • The dimension and specification can be customized by clients’ request.

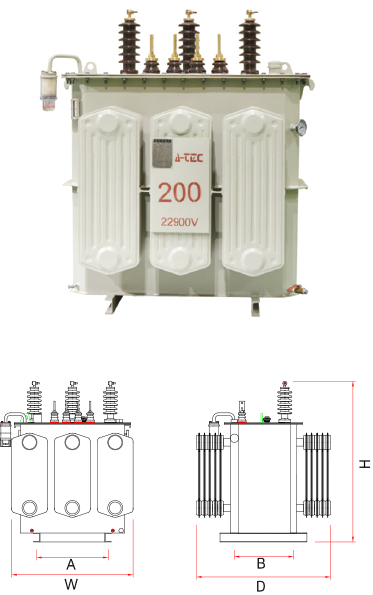

Oil type transformer

- Frequency: 50Hz / 60Hz
- Phase: 1Ø / 3Ø

Rating
(kva)		 22900V / 380V
Dimension (mm) Weight
(kg)
W D H
100 810 420 1180 753
200 860 440 1310 1030
300 930 500 1320 1273
400 890 540 1410 1473
500 920 550 1450 1584
600 960 580 1450 1732
700 1040 610 1500 1967
800 1080 630 1500 2165
900 1100 640 1540 2284
1000 1130 660 1510 2426
• The above dimension and weight can be changed without notice. • The dimension and specification can be customized by clients’ request.
